24 SEABORG G1200M

■Other details

【Handle knob】
・L exchangeable

【Rod clamp】
・Can be installed (included)

Categories: Electric, Reels

DESCRIPTION

Catch Bigger Fish with ‘BIG MONSTER MEGATWIN’

The SEABORG 1200MJ features a Mega Torque-G Motor, offering 36kg drag power and 52kg winding power, 10% stronger than before. It automatically adjusts for big catches and works with 12V to 24V power, fitting various boats.

With the optional ‘REMOTE JOG,’ you can control winding and check depth remotely. The ‘BIG MONSTER’ makes fishing easier and more enjoyable.”

Technologies

■ REMOTE JOG POWER LEVER

Remote Jog gives the angler the ability to see the line information and control the reel via a bluetooth connected remote control.

■ MAGSEALED BALL BEARING

Daiwa’s ultimate technology – Magsealed Ball Bearing prevents water and dust intrusion inside the ball bearing which greatly reduces reel corrosion and noise. Applied to the spool shaft surrounding, a place where salt and dust intrusion is most likely to happen and maintenance is difficult. This will improve the long-term durability and the smoothness.

■ ATD

ATD gives you the power and poise to take control of whatever crosses your angling path. ATD is a combination of seven large carbon washers and improved drag grease. The new grease exhibits a low viscosity at rest, yet becomes more viscous immediately after drag startup. This reduces initial drag start-up inertia. When combined with the structural changes to the ATD Drag washers, results in a smoother stronger drag from the initial hook up, allowing you to concentrate on the fight. This tough drag function will adjust according to the pulling of fish.

■ MEGATWIN

Daiwa’s original Seaborg Megatwin reel design utilises a two-gear ratio system. The new Seaborg employs a totally redesigned system that allows the user to immediately switch between mega-power mode and mega-speed mode by simply touching a button. During retrieve or when battling a monster the new speed function switches smoothly and effortlessly. With this functionality, an angler can alternate to the best speed, depending on the situation.

Product Detail

: MEGATORQUE-G Motor

: Heat Dissipation

: ATD

: Mega Twin

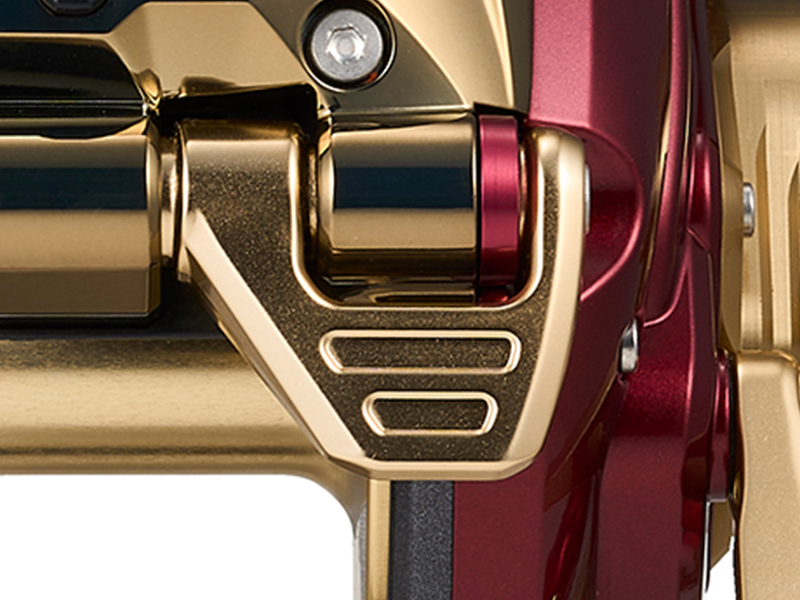

: Aluminum JOG Power Lever

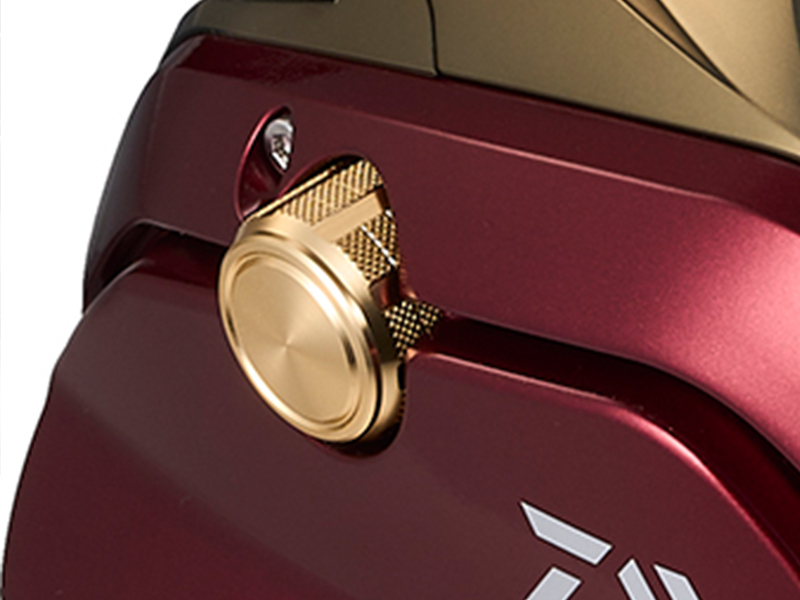

: Aluminum Fall Brake Dial

: Large Diameter Aluminum Round Knob

: Large Diameter 6mm Line Guide

: Can reeled in from water deoth 0.0

: Warning display

REMOTE JOG (Sold Separately)

When the electric reel and REMOTE JOG are connected.
1. You can wind (start, stop, adjust speed) from a position away from the reel
. 2. You can see the water depth even from a position away from the reel
. 3. You can comfortably operate the JOG power lever even on large models.

■ IC COUNTER MENU

Menu	Operation
Line input	P1 (input line length) / P2 (input bottom winding) / P3 (input 100m drawn out) / P4 (input 10m drawn out) *Input possible from PE No. 5
Sub Counter	Counter from the bottom / Winding speed display / Remaining winding time display
Ship veri stop	1m to 30m range
Megatwin Setting	Automatic switching/Manual switching
Alarm sound	ON/OFF
Depth correction	10m pullout correction/Water depth specification correction
Actual fishing history	Use distance/time
Language	Japanese / English / Simplified Chinese / Traditional Chinese / Korean / French / Spanish / German / Italian
Unit	m/ft

Video

Specs

Glossary

Maximum hoisting force	Reference value based on power supply voltage 13V and shaft torque. (Power range for Mega Twin mechanism) * kg = Kgf cm (Specifications are written in simplified form.)
Normal hoisting speed	Average of 100m hoisting speed with 13V power supply and 1kg load.
JAFS standard hoisting force	Measured value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association standard. Momentary maximum hoisting force at the outer diameter of the spool. (power range for mega twin mechanism)
JAFS standard hoisting speed	Measured value at a power supply voltage of 13 V according to the Japan Fishing Goods Industry Association standard. Hoisting speed at no load at the outer diameter of the spool.

* “JAFS Standards” = Standards for fishing products established by the Japan Fishing Goods Industry Association.

Remark

■ Power supply:

Compatible with 12V to 24V direct current (DC). It cannot be used with unspecified power sources, such as household AC 100V. In addition, the voltage of boat power sources is prone to become unstable due to generators and wiring, and the reel’s protection circuit may activate, causing rotation to stop or become intermittent. To ensure the reel’s full performance, please use a genuine Daiwa electric reel battery.

Accessories

・Chloroprene reel bag
・Rod clamp
・Tools
・Mega cord
・Threading pin
・Simple manual
・Warranty
・Warning list
